Data-driven scaling methods for soil moisture cosmic ray neutron sensors

Cosmic ray neutron sensors (CRNSs) are state-of-the-art tools for field-scale soil moisture measurements, yet uncertainties persist due to traditional methods for estimating scaling parameters that lack the capacity to account for site-specific and sensor-specific characteristics. This study introduces a novel, data-driven approach to estimate key scaling parameters (beta, psi, and omega) by directly calculating scaling parameters from measurement data, emphasizing local environmental factors and sensor attributes. The method demonstrates reliability and robustness, with strong correlations between estimated scaling parameters and environmental factors such as cutoff rigidity, latitude, and elevation, as well as consistency with semi-analytical traditional methods, e.g. for beta an R² of 0.46. The study also reveals systematically higher variability in calibration parameters than previously assumed, underscoring the importance of this new method, of data quality, and of the careful selection of Neutron Monitor Database (NMDB) reference sites. The new method reduces RMSE by up to 25 %, with differences in soil moisture estimates between traditional and data-driven methods reaching 0.04 m³ m⁻³ and up to 0.12 m³ m⁻³ under certain conditions. Sensitivity analysis shows that soil moisture estimation is most influenced by scaling parameters in the wet end of the soil moisture spectrum. By improving the accuracy of CRNS data, this approach enhances soil moisture estimation and supports better decisions in agriculture, hydrology, and climate monitoring. Future research should focus on refining these scaling methods and enhancing data quality to further improve CRNS measurement accuracy.

1 Introduction

Soil moisture describes the quantity of water present in the vadose zone. Soil moisture or soil water content has significant impacts on a number of soil properties, including thermal and hydraulic soil characteristics, groundwater recharge processes, infiltration rates, the availability of water for plants, irrigation requirements, and the severity of drought conditions. (Řehoř et al., 2024; Humphrey et al., 2021; Vereecken et al., 2008). In order to effectively manage these critical processes and make informed decisions, soil moisture measurements have been developed at various scales, ranging from the pore scale to the plot scale, field scale, and global scale (Robinson et al., 2008). Pore- and plot-scale measurements primarily utilize the geoelectrical properties of soils (Dorigo et al., 2021; Robinson et al., 2008), while field-scale measurements often rely on networks of point-scale sensors (Korres et al., 2015; Dorigo et al., 2021) or nuclear physics principles (Zreda et al., 2008). From the regional to the global scale, soil moisture is usually quantified by analysing the dielectric properties of the soil using passive or active microwave sensors (Manfreda et al., 2018; Entekhabi et al., 2010).

Cosmic ray neutron sensors (CRNSs) provide a critical link between small-scale and large-scale soil moisture measurements, bridging the gap from local field measurements to broader regional assessments (Zreda et al., 2008; Baatz et al., 2014). CRNSs operate by detecting epithermal neutrons generated by cosmic rays interacting with the Earth's atmosphere. The hydrogen in soil water plays an important role in attenuating epithermal neutrons in the lower atmosphere. By measuring the epithermal neutrons above the soil with the CRNS, it is therefore possible to estimate the average soil moisture over an area of several tens of hectares (Köhli et al., 2015; Desilets et al., 2010). This unique capability allows CRNSs to integrate spatial variability in soil moisture across a landscape more effectively than point-scale soil moisture sensors. Furthermore, it serves to complement satellite-based measurements, which cover larger scales but with lower resolution (Babaeian et al., 2019; Montzka et al., 2017). As such, improving soil moisture estimates from CRNSs offers significant potential for enhancing water resource management, agricultural practices, and drought monitoring by providing reliable, intermediate-scale data (Baatz et al., 2017; Brogi et al., 2022).

Appropriate signal processing of CRNS raw data is crucial for the accurate conversion of neutron count rates to soil moisture (Davies et al., 2022). In addition to hydrogen within the CRNS footprint, the CRNS neutron signal is influenced by various other factors, including atmospheric pressure, air humidity, and incoming neutron intensity. These factors are typically accounted for by applying scaling functions for atmospheric pressure, air humidity, and incoming neutron intensity to isolate the neutron signal stemming from hydrogen (Desilets and Zreda, 2003; Desilets et al., 2006). For instance, scaling for atmospheric pressure is necessary because higher pressure compresses the atmosphere, increasing neutron attenuation and reducing detected counts (Zreda et al., 2012; Baatz et al., 2014). This requires applying a correction factor to normalize neutron flux to a standard pressure. Similarly, air humidity affects the number of epithermal neutrons detected by increasing the amount of hydrogen in the air, necessitating a separate humidity correction to ensure accurate soil moisture estimation (Rosolem et al., 2013; Köhli et al., 2021). In addition, incoming neutron intensity varies over time due to solar activity and cosmic events, requiring adjustments to the neutron count rates to account for these fluctuations (Gerontidou et al., 2021; Hawdon et al., 2014; McJannet and Desilets, 2023). Additionally, model–data fusion techniques that integrate CRNS signals with other measurements and model predictions of soil moisture are increasingly being used to refine soil moisture estimates (Baatz et al., 2017; Li et al., 2024). The improvement of these signal processing methods is of paramount importance for the enhancement of the accuracy, reliability, and resolution of soil moisture data obtained from CRNSs (Davies et al., 2022; Brogi et al., 2022). Ultimately, this will facilitate more informed decisions in agricultural and hydrological management, as well as more accurate observations of climate change effects (Bogena et al., 2022).

While CRNSs are increasingly used for soil moisture measurement (Bogena et al., 2022; Zreda et al., 2012), significant uncertainties persist due to the reliance on traditional semi-analytical approaches for correcting environmental factors such as atmospheric pressure, humidity, and incoming neutron intensity. For example, scaling for air humidity was found to affect CRNS neutron intensities linearly (Rosolem et al., 2013) or even steeper (Köhli et al., 2021). The relation of incoming neutron intensity depends on CRNSs and the reference site of the monitor observing incoming neutron intensity (McJannet and Desilets, 2023; Hawdon et al., 2014). For atmospheric pressure, scaling coefficients are site-specific and depend on the cutoff rigidity and elevation of the CRNSs (Tirado-Bueno et al., 2021; Desilets et al., 2006). All methods often depend on generalized scaling functions based on global estimates, such as cutoff rigidity and other global relationships, which may not accurately reflect local site characteristics, sensor manufacturing attributes, or sensor-specific energy spectra that can influence calibration parameters. Often, these methods have been developed based on available data from incoming neutron or cosmic ray monitors of the Neutron Monitor Database (NMDB) project for the reason of high data availability from these monitors and high signal-to-noise ratio with CRNS observations. However, the difference in sensor characteristics and the objective to detect soil moisture with CRNSs led to the critical need to develop more site-specific and sensor-specific scaling approaches that account for the often very sensor-specific and local conditions.

This study aims to address these limitations by presenting a novel data-driven, empirical approach for calibrating scaling parameters (beta, psi, and omega) used in CRNSs. Specifically, this study has three objectives: (1) to develop an inverse method that directly calculates correction parameters from measurement signals while treating soil moisture dynamics as a noise term, (2) to evaluate the accuracy of current scaling functions, and (3) to quantify the impact of local environmental factors on calibration parameters. The hypothesis is that this approach, by accounting for site-specific and sensor-specific conditions, will improve the accuracy and reliability of CRNS soil moisture measurements. By enhancing calibration methods, this study aims to support better-informed decisions in agriculture, hydrology, and climate monitoring.

2 Methods

This study introduces a data-driven method for estimating the scaling parameters beta, psi, and omega with cosmic ray neutron sensors (CRNSs) to improve soil moisture measurement accuracy. Section 2.1 outlines the scaling parameters, which correct for atmospheric pressure, incoming neutron intensity, and absolute air humidity. The forward model, detailed in Sect. 2.2, combines these scaling functions to estimate neutron flux by applying the corrections to the observed flux from the previous time step. Uncertainty estimates, described in Sect. 2.3, are calculated using bootstrapping techniques to evaluate the robustness and reliability of scaling functions. Together, this integrated approach provides a systematic and flexible framework for site- and sensor-specific calibration.

2.1 Theoretical aspects

2.1.1 Scaling parameters

Traditional semi-analytical methods estimate scaling parameters for air humidity, atmospheric pressure, and incoming neutron intensity primarily using Monte Carlo neutron particle simulations, limited CRNS measurement data, and NMDB data (see e.g. Köhli et al., 2023; Desilets et al., 2010; Dorman, 2004; McJannet and Desilets, 2023; Rosolem et al., 2013; Desilets and Zreda, 2003). These approaches laid the foundation for soil moisture estimation from CRNSs by providing generalized scaling parameter estimates. However, they rely on strong correlations with global variables such as cutoff rigidity, latitude, and elevation, using data from relatively few reference stations scattered across the globe. While effective for global first estimates, these methods are limited in their ability to account for site-specific and sensor-specific characteristics, potentially resulting in inaccuracies in soil moisture estimation. In contrast, we propose a data-driven approach that directly calculates scaling parameters from observational data, enabling robust calibration tailored to local conditions, as detailed in the following subsections.

2.1.2 Scaling with atmospheric pressure

Neutron flux was found to be exponentially dependent on atmospheric pressure (Tirado-Bueno et al., 2021; Desilets et al., 2006; Desilets and Zreda, 2003):

$$\begin{array}{}\text{(1)}& N_{\text{ref}}/N_{\mathrm{1}}=e^{(\mathit{\beta }\cdot (P_{\mathrm{1}}-P_{\text{ref}}\left)\right)},\end{array}$$

where β (beta) is a constant proportional to the attenuation length. Beta and the attenuation length scale the reference neutron flux N_ref observed under reference atmospheric pressure P_ref (in hPa) to observed neutron flux N₁ at time t=1 given observed atmospheric pressure P₁ at time t=1 (in hPa). Noteworthy is the scaling factor that is exponential and consistent across different atmospheric pressures, meaning the neutron intensity scales equally for any pressure difference. This is different for the two following scaling approaches for air humidity and incoming neutron flux. A second noteworthy characteristic is that with a very small beta, such as −0.0076, the scaling becomes nearly linear. The physical explanation of the scaling relationships has been widely studied and discussed (Tirado-Bueno et al., 2021; Schrön et al., 2024; Nuntiyakul et al., 2014; Clem and Dorman, 2000). Most of these analyses focused on neutron monitors, with only a limited number of analyses using CRNSs, which measure neutron flux at the energy spectrum relevant for soil moisture detection (Schrön et al., 2024). Here, we focus on epithermal neutron count data from 12 CRNS stations from the COSMOS-Europe data set (Bogena et al., 2022).

2.1.3 Scaling with incoming neutron intensity

The second dependency of neutron flux observed is that on incoming neutron intensity. Here, commonly a linear scaling approach is adopted to account for the relative change in incoming neutron intensity (Baatz et al., 2015; Zreda et al., 2012; Hawdon et al., 2014). Reference stations are those of the neutron monitor database nmdb.eu (Bütikofer, 2018; Gerontidou et al., 2021). The scaling depends on the location of the cosmic ray neutron sensor along the geomagnetic cutoff rigidity, longitude and latitude of the earth, elevation, and energy spectrum observed of either sensor amongst other potential factors. Recently, new generalized relationships were established for CRNSs by McJannet and Desilets (2023). Here, we adopt the linear scaling approach previously adopted because of its robustness:

$$\begin{array}{}\text{(2)}& N_{\text{ref}}/N_{\mathrm{1}}=(\mathrm{1}+\mathit{\psi }\cdot (I_{\mathrm{1}}-I_{\text{ref}}\left)\right).\end{array}$$

Table 1 NMDB sites used for correction of incoming neutron intensity with cutoff rigidity in gigavolts (GV) calculated by Gerontidou et al. (2021).

Here ψ (psi) is a constant specific to the cosmic ray neutron sensor; its location, manufacturing, and measurement characteristics; and the neutron monitor used for incoming neutron intensity. I_ref is the reference incoming neutron intensity, I₁ is the neutron intensity at the time of observation t=1, and N_ref is the reference neutron flux observed. Incoming neutron intensity is calculated as the ratio of incoming neutron count rate divided by the mean of the incoming neutron count rate over a time interval. Noteworthy is that, when scaling based on incoming neutron intensity, the scaling is linear, and the choice of reference intensity (I_ref) affects the result. Consequently, using different reference values leads to small inconsistencies in scaling, causing the adjusted neutron intensities (N₁) to vary for different incoming neutron intensities. Although negligible for a small range of I₁−I_ref, it highlights the necessity of employing a mean of incoming neutron flux in lieu of an I_ref at either end of the I spectrum over the measurement period. This is an important difference from Eq. (1), where scaling is consistent for different reference values. Moreover, numerous studies have indicated that incoming neutron flux is dependent on the cutoff rigidity, which is why the position of the CRNS and NMDB stations should be as close as possible (Hawdon et al., 2014; McJannet and Desilets, 2023). Here, we used six stations of the NMDB database with comparable pair-wise cutoff rigidities and a range of 0.65 to 8.53 GV (gigavolts; Table 1).

2.1.4 Scaling with air humidity

Rosolem et al. (2013) identified a linear relationship of air humidity and epithermal neutron via Monte Carlo neutron particle simulations using the Monte Carlo N-Particle eXtended (MCNPX) model:

$$\begin{array}{}\text{(3)}& N_{\text{ref}}/N_{\mathrm{1}}=(\mathrm{1}+\mathit{\omega }\cdot (H_{\mathrm{1}}-H_{\text{ref}}\left)\right),\end{array}$$

where H_ref is the reference absolute air humidity, i.e. water content (in g m⁻³) at 2 m above ground; ω (omega) is a constant; and H₁ is the air humidity (in g m⁻³) at the time of observation of neutron flux N_h. Again, the rate of change in $N_{\text{ref}}/N_{\mathrm{1}}$ is not independent of the chosen H_ref and leads to small discrepancies for different H_ref values. This is an important constraint and strong reason to choose H_ref as the mean over the measurement interval. While this scaling approach was confirmed in some studies (Schrön et al., 2024), other studies have also indicated that air humidity could have a larger impact on neutron intensity (Köhli et al., 2021).

2.1.5 Temporal aggregation of neutron flux

Scaling parameters beta, omega, and psi were identified to be constant in time for a specific site except for little variation due to changes in the solar spectrum (McJannet and Desilets, 2023; Dunai, 2000; Desilets and Zreda, 2003). The neutron flux data follow a Poisson distribution as it is counts per time interval. For aggregating temporal Poisson data, it is advisable to use the mean instead of the median over a specific time interval because the relationship between mean and cumulative sum over a large time interval is proportional. Importantly, the standard deviation in relative terms decreases with increasing measurement period because it is proportional to the square root of the number of counts. Therefore, aggregation over a prolonged time interval is advantageous for reducing measurement uncertainty, although this approach inevitably entails a compromise in that changes in other environmental variables over the measurement period cannot be directly accounted for.

2.2 Inversion of scaling functions

In this study, we employ an inverse estimation methodology to derive beta, omega, and psi values for each site within the tested data set. This approach differs from previous studies that have utilized semi-analytical techniques to ascertain the scaling parameters. Our analysis draws upon atmospheric pressure, air humidity, and epithermal neutron data of the European COSMOS network (Bogena et al., 2022). Moreover, data from six neutron monitors were utilized from the NMDB database (Table 1). All data were provided at hourly resolution, and quality checks were implemented to ensure the integrity of the data set. Only data that fell within the physical range of the observed quantity were selected, and values that differed from neighbouring hourly measurements by a set threshold value were removed. Subsequently, the data were aggregated to daily values, with the exclusion of measurements that had been flagged for quality issues.

The forward model used for estimating the parameters beta, omega, and psi is based on the combination of scaling functions for atmospheric pressure, absolute air humidity, and incoming neutron intensity, as detailed in Eqs. (1)–(3). The forward model computes the neutron flux N at time t by applying these scaling factors to the observed neutron flux $N_{t-\mathrm{1},\text{obs}}$ of the previous time step (t−1). This previous time step essentially serves as the reference condition:

$$\begin{array}{}\text{(4)}& \begin{array}{rl}{N}_{t,\text{est}}=& N_{t-\mathrm{1},\text{obs}}\cdot e^{(\mathit{\beta }\cdot (P_{\mathrm{1}}-P_{\text{ref}}\left)\right)}\cdot (\mathrm{1}+\mathit{\psi }\cdot (I_{\mathrm{1}}-I_{\text{ref}}\left)\right)\\ & \times (\mathrm{1}+\mathit{\omega }\cdot (H_{\mathrm{1}}-H_{\text{ref}}\left)\right).\end{array}\end{array}$$

Parameters β (beta), ψ (psi), and ω (omega) are the free parameters to be optimized. N,P, H, and I represent vectors of n days, and N_t,est is the neutron flux estimated using the corrections. To optimize the three parameters, we use an inversion approach that minimizes the root mean square error (RMSE) between the observed neutron flux N_t,obs and the estimated neutron flux N_t,est:

$$\begin{array}{}\text{(5)}& \text{RMSE}=\sqrt{{\displaystyle \frac{\mathrm{1}}{n}}\sum _{t=\mathrm{1}}^n(N_{t,\text{obs}}-N_{t,\text{est}}{)}^{\mathrm{2}}},\end{array}$$

where n represents the total number of days. Remaining uncertainty was assumed to be attributed to changes in local hydrogen pools such as soil moisture; Poisson noise, which is considerably small for large time intervals; and measurement uncertainties of the environmental sensors. In the latter synthetic case, Poisson noise and measurement uncertainty of the environmental sensors can be excluded.

2.3 Uncertainty estimates

Uncertainty was quantified via moving-block bootstrapping. Here, the observed time series were divided into 100 time segments of equal length, with each block length representing one-seventh of the total time series. The data-driven scaling parameters are estimated for each segment, parameter estimates were logged, and the uncertainty was defined as the standard deviation of the parameter estimates calculated from these 100 bootstraps by sensor.

2.4 Synthetic test case

A synthetic test case was set up and used to test the optimization routine. The synthetic test case set-up generates synthetic neutron flux data that are used as “truth” to test the algorithm's performance under known conditions (Das et al., 2014; Pipunic et al., 2008). For setting up a synthetic CRNS test case, incoming neutron intensity of the Jungfraujoch NMDB monitor and soil moisture, atmospheric pressure, and air humidity observations from the Merzenhausen test site, Germany (Bogena et al., 2018), were used to produce a synthetic neutron flux signal following the approach by Davies et al. (2022). In brief, time series of point-scale soil moisture observations were used to generate synthetic neutron flux using a fixed N₀=1205 and the inverse relationship of neutron flux with soil moisture (Desilets et al., 2010):

$$\begin{array}{}\text{(6)}& \text{SWC}=a_{\mathrm{0}}/\left(\right(N_{\text{pih}}/N_{\mathrm{0}})-a_{\mathrm{1}})-a_{\mathrm{2}}.\end{array}$$

Here, N_pih is the synthetic corrected neutron flux; a₀, a₁, and a₂ are empirical constants; N₀ is a calibration parameter for reference conditions; and SWC is soil water content. This neutron flux is transformed to uncorrected neutron flux using the scaling equations (Eqs. 1–3) and fixed reference conditions (P_ref = mean atmospheric pressure, H_ref = 7 g m⁻³, I_ref = 1.0). This results in a first CRNS time series of neutron flux that includes dynamics of soil moisture and environmental conditions. Poisson noise was added to the hourly data to generate realistic noise for the second time series of neutron flux.

The neutron observations were used in the synthetic scenario to estimate beta, omega, and psi inversely using the previously described inversion routine. The proposed inverse estimation of beta, omega, and psi is neither aware nor made aware of changes in soil moisture. Thus, the soil moisture enters the calibration as an unknown and as a noise term. The inverse parameter estimation results are reported. The synthetic scenario was run (a) once without Poisson noise added and (b) 1000 times with individual hourly Poisson noise and soil moisture dynamics. Scenario (b) resulted in 1000 results. The ensemble was used to calculate the percentage of parameter estimates outside the estimated parameter value ± uncertainty.

2.5 Sensitivity analysis

The sensitivity of soil moisture estimates from CRNS data is explored with numerical experiments. Sensitivity of soil moisture estimates on scaling parameters is critical and one reason why improved scaling parameters are desirable. Here, we define three levels of true reference soil moisture for the numerical experiments: low (0.1 m³ m⁻³), medium (0.25 m³ m⁻³), and high (0.4 m³ m⁻³). For reference soil moisture, “theoretically observed neutron flux” was calculated for a range of possible data-driven scaling parameters as found for the COSMOS-Europe sites in this study. This neutron flux is recalculated to estimate soil moisture assuming standard scaling parameters (beta = −0.0074, omega = −0.0054, and psi = 0.7). It should be noted that this is not an accurate representation of the true reference soil moisture. This difference in soil moisture will be larger for data-driven scaling parameters being further from standard scaling parameters. It is important to note that estimates will not be error-free if the environmental conditions and/or scaling parameters do not align with the standard parameters. We then provide a heat map of the difference between the estimated soil moisture of standard parameters and the “true” soil moisture, representing the error given different environmental conditions to illustrate the potential impact of differing site-specific scaling parameters on soil moisture estimates.

2.6 Energy dependence of scaling parameters

In order to ascertain whether the energy spectrum of the CRNS detectors could be of significance, scaling parameters for the thermal neutrons that were measured using co-located bare detectors were also computed. The thermal neutrons are rather less sensitive to hydrogen within the footprint and may show a different scaling dependence on environmental factors (Jakobi et al., 2022). This results in potentially different scaling parameters for the thermal neutrons compared to epithermal neutrons used for soil moisture detection, although they are measured at the same location.

Table 2 Parameter estimation results for synthetic experiments with 1000 realizations. The results for “SWC + Poisson noise” are mean parameter estimates of the 1000 realizations. The percentage of parameter estimates inside the uncertainty bounds with respect to 1000 realizations is reported.

2.7 Model evaluation

The method developed in this study was evaluated at the Alento test site which was chosen since the standard correction parameters were strongly different from those found in this study. The Alento River Catchment (ARC) is located in Campania, an administrative region situated in southern Italy. Recently, two experimental sub-catchments (MFC2 and GOR1) were instrumented with (i) a CRNS (CRS2000/B, Hydroinnova LLC, Albuquerque, USA; (ii) a wireless sensor network (SoilNet, Forschungszentrum Jülich, Germany) controlling a total of 40 GS3 sensors (METER Group Inc., Pullman, WA, USA) monitoring soil water content at the soil depths of 15 and 30 cm over 20 positions around the CRNS; and (iii) a weather station to monitor rainfall, air temperature, relative humidity, wind speed, and net solar radiation (Nasta et al., 2024; Nasta et al., 2020). Three periods were selected out of the whole time series. These periods are featured with continuous measurements of neutron flux, atmospheric pressure, air humidity, incoming neutron intensity from Jungfraujoch, and soil moisture by GS3 sensors. Selection criteria were measurement continuity and for either period high variation in incoming neutron intensity, air humidity, and atmospheric pressure. Soil moisture was vertically weighted using the approach proposed by Power et al. (2021). Calibration was performed for each time period individually using the site-specific data reported in Bogena et al. (2022), mean vertically weighted soil moisture over the time period, and mean-corrected neutron flux over this time period. For evaluation, the RMSE was calculated for CRNS soil moisture using the conservative parameters (reference approach) and using the new parameters presented in this paper. Both approaches are compared against weighted soil moisture.

3 Results

3.1 Synthetic test case

The results of the synthetic test case demonstrate that the parameters beta, omega, and psi can be accurately estimated (Table 2). This also applies to the case of dynamic soil moisture and additional Poisson noise. Parameter estimates without Poisson noise are about as close to true values as estimates with Poisson noise (Table 2). No Poisson noise resulted in correct estimates of the true values for beta = −0.0074 ± 0.00001, omega was estimated closely as 0.00535 ± 0.0001, and psi was also estimated close to the synthetic truth as 0.716 ± 0.02. With Poisson noise, the differences between estimates and truth were slightly larger than for the case with soil moisture dynamics only. The uncertainty was notably higher with added Poisson noise compared to only soil moisture dynamics. Uncertainty values were calculated with moving-block bootstrapping. The synthetic test demonstrated that 96 % of the parameter estimates were within the uncertainty range of the synthetic truth. Moreover, the mean values of the 1000 realizations were within the uncertainty ranges. Out of the 1000 realizations, the percentage of estimates outside the uncertainty range was about equal for all three parameter sets. These uncertainty bounds will be reported in the further analysis.

3.2 Beta estimates (atmospheric pressure scaling)

Beta estimates for the sites of the COSMOS-Europe data set excluding site LEC001 ranges between −0.0052 and −0.0078 with mean and median of −0.0071 and −0.0073, respectively (Fig. 1). These are parameter estimates for sites at cutoff rigidities smaller than root mean square error as convergence criteria and using a correction for incoming neutron intensity from Jungfraujoch. Beta estimates were also made using incoming neutron intensity correction with Oulu, Apty, Mexico, and Athens NMDB monitors. Moreover, the beta parameter estimates and uncertainties for these NMDB monitors (Table 1) were very close to those obtained with Jungfraujoch data. In general, the Pearson correlation coefficient was high (larger 0.9), which indicates that beta estimates are rather indifferent to the choice of NMDB monitor. Error bars indicate the uncertainty of beta estimates, which is 0.00036 on average for the sites (Fig. 1). However, for sensors with cutoff rigidities larger than 4.5 we obtained beta estimates between −0.006 and −0.007 even with uncertainties considered. This confirms a close relationship between beta and cutoff rigidity, although the beta values are far from the previously estimated range between −0.007 and −0.008. The relationship of beta estimated with this method and beta estimated by the method of McJannet and Desilets (2023) also shows an R² of 0.46. It is notable that the range of beta estimates in this study is considerably broader than that observed in previously published beta estimates or the commonly utilized reference value of −0.0076.

Figure 1 (a) Beta estimate and second-order polynomial regression with cutoff rigidity for the COSMOS-Europe sites, excluding sites BUC001 and LEC001. (b) Beta estimates of this study (data-driven) in comparison to those derived by McJannet and Desilets (2023). (c) Boxplot of beta estimates of this study (data-driven) in comparison to those derived by McJannet and Desilets (2023). Indicated are the median of the data sets (horizontal bar), the outliers (circles), the box (25th and 75th percentile – interquartile range), and whiskers (1.5× interquartile range).

3.3 Psi estimates (incoming neutron intensity scaling)

Psi estimates showed a strong dependence on cutoff rigidity (CR) if, for example, Jungfraujoch station (CR = 4.5 GV, gigavolts) was used for incoming neutron intensity correction (Fig. 2a). Here, psi ranged between 0.05 and 1.12. CRNS sites with cutoff rigidity close to Jungfraujoch exhibited higher psi than those with cutoff rigidity different from Jungfrauhoch (CR < 2 and CR > 6). Although not all sites with CR between 2.5 and 4.5 had psi equal to 1, a site located in the Alps in the vicinity of Jungfraujoch exhibits psi equal to 1. This indicates a 1:1 linear scaling of incoming neutron intensity with neutron intensity measured at the CRNS site. The estimates of psi also indicate that cutoff rigidity is a significant factor in defining psi. It should be noted, however, that the elevation of the NMDB monitor and geographical distance may also have an impact in defining psi.

Figure 2 Psi estimated for 64 COSMOS-Europe sites and different NMDB monitors: (a) Jungfraujoch and (b) Apty and Oulu. Panel (c) includes also results for Lmks, Mexico, and Athens with the NMDB monitor's cutoff rigidity denoted in the legend. Psi estimates are provided as dots, X's, and asterisks. Polynomial regressions to NMDB monitors are shown as lines. Hawdon et al.'s (2014) study is provided with reference to Jungfraujoch.

Mean psi estimates for all sites using any of the sites of Jungfraujoch (CR = 4.5 GV), Oulu (CR = 0.8 GV), Apty (Russia, CR = 0.65 GV), Mexico (CR = 8.3 GV), and Athens (CR = 8.53 GV) were 0.62, 0.74, 0.74, 0.95, and 0.86, respectively – indicating a strong influence of incoming neutron intensity on the CRNS signal (Fig. 2c). However, a correlation of psi values for different stations was not always strong. For example, Jungfraujoch exhibited the highest correlation (r = 0.45) with the Apty monitor. Overall, highest correlation was observed between the Apty and Oulu monitors (r = 0.87). These rather low correlations indicate differences with regard to psi estimated for individual NMDB monitors. The correlation between Lmks and Jungfraujoch was particularly low (r = 0.13) despite both monitors being located at high altitude (+2000 m above sea level) and in Central Europe. Moreover, psi estimates for the Athens and Mexico monitors correlated only weakly at 0.28 despite a low difference (0.2 GV) in cutoff rigidity of Athens and Mexico. Common to all CRNS sites is that psi is smaller for CRNS sites with large cutoff rigidity. However, the psi differs depending on NMDB monitor and location.

3.4 Omega estimates (air humidity scaling)

Estimates of omega range between −0.016 and 0.017, with mean and median at −0.0061 and −0.0066, respectively (Fig. 3). Here, as well as for the estimation of the other environmental factors, data quality plays a crucial role. Omega showed a remarkable large range. Omega's mean (−0.0065) and median (−0.0068) are close but not equal to the originally estimated value of omega (−0.0054) from calculations with a Monte Carlo neutron particle model (Rosolem et al., 2013). The standard deviation shows a large uncertainty of 0.0041 for omega. The standard deviation diminishes to 0.0018 if the three highest and three lowest estimates of omega are removed from the data set with 64 sites.

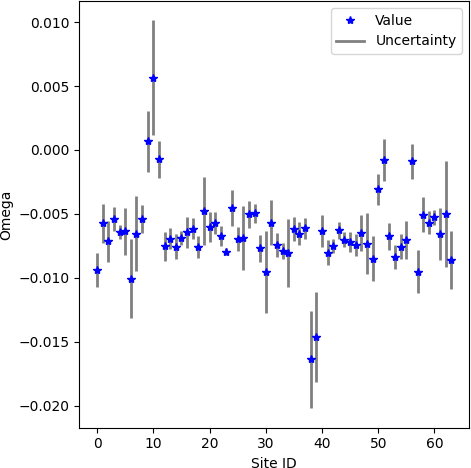

Figure 3 Omega estimates (blue star) and uncertainty (grey bars) of omega estimates for scaling CRNS counts with air humidity. The result of the site WEC001 is excluded because of its high uncertainty (uncertainty = 0.02).

3.5 Sensitivity of soil moisture to scaling parameters

The results for beta, psi, and omega showed significant differences amongst sites and from reference values. The sensitivity analysis of soil moisture depending on scaling parameters demonstrates that the difference between true and estimated soil moisture can easily be 4 vol %. The error, i.e. difference between estimated soil moisture and true soil moisture, depends on three factors: reference soil moisture, scaling parameter, and change in environmental variable (atmospheric pressure, air humidity, incoming neutron intensity; see Fig. 4). Reference values result in error-free estimates, i.e. difference in estimated soil moisture, while any change of the factors results in differences between truth and estimated soil moisture. Reference values and the 2 % difference are highlighted by the black line in Fig. 4. The sensitivity analysis demonstrates that differences matter more for high soil water content. Scaling factors and reference values strongly matter for soil moisture estimates. Generally, fewer differences can be expected for scaling factors chosen at medium level and average environmental calibration conditions for atmospheric pressure, air humidity, and incoming neutron intensity. The heat maps (Fig. 4) indicate the strongest differences if scaling parameters and calibration conditions are at the far end of either side.

Figure 4 Sensitivity of soil moisture calculated as the difference between estimated and true soil moisture. Estimated soil moisture depends on atmospheric pressure (a–c), incoming neutron intensity (d–f), and air humidity (g–i) and their respective ranges. True soil moisture remained constant, while estimated soil moisture depends also on the reference value of omega and reference value of air humidity. Contour lines show soil moisture differences of 0.02 m³ m⁻³ (curved) and 0.00 m³ m⁻³ (straight) to reference values. Differences between the estimated moisture and true soil moisture were always highest for moist conditions, e.g. 0.4 m³ m⁻³.

3.6 Uncertainty for data-driven parameter estimates

We found that the parameter estimates strongly depend on data quality and data availability. The following Fig. 5 shows the uncertainty of beta with regard to days observed (Fig. 5a, c, and e) and with regard to total neutron counts (Fig. 5b, d, and f). Both metrics show a strong correlation with threshold values that can be identified to generally constrain the uncertainty of the beta estimate. The same holds for omega and psi estimates. Given the uncertainty depending on days of measurement and overall observed neutron counts, 1000 consecutive days of observation or 20 000 000 neutron counts appear to result in a rather low uncertainty of scaling parameters. Here, the slope of the polynomial approximation flattens, indicating a plateau that is reached from these values. The results for the synthetic experiment were always better than the regression based on observed data.

Figure 5 Uncertainty of beta, psi, and omega with respect to consecutive days of measurement (a, c, e) and neutron flux (b, d, f) over the whole time period. One outlier was removed for omega. Uncertainty calculated for the Alento site is marked as a red asterisk, and the synthetic test case (1000 realizations) is marked as a blue plus. The solid grey lines denotes the logarithmic fitted line.

3.7 Energy dependence of scaling parameters

Twelve CRNS sensors provided data of a different energy spectrum than neutrons used for soil moisture. Accuracy and the number of detectors did not allow us to establish a clear relationship between cutoff rigidity and scaling parameter. Figure 6 shows the results of scaling parameters for epithermal and thermal neutron data. The results demonstrate for beta a mean absolute difference of 0.0004 mostly subject to 1 of 12 sensors. Omega for thermal neutron counts is smaller than for moderated neutron counts with a mean absolute error of 0.0036. This is a clear indication that thermal neutron counts are less sensitive to air humidity changes than moderated neutrons. The scaling factor for incoming neutron intensity psi is also smaller for thermal neutron counts than for epithermal neutron counts, which indicates a smaller impact of the incoming neutron intensity on thermal neutrons.

Figure 6 Results of scaling parameters, namely (a) beta, (b) omega, and (c) psi, for thermal neutron counts using bare counter tubes against epithermal neutron counts using a moderated tube. Moderated, i.e. epithermal, counts are commonly used for soil moisture determination with CRNSs.

3.8 Model evaluation

The evaluation results are reported in Fig. 7 for the MFC2 experimental field (named ALC002 site in Bogena et al., 2022) at the Alento site. In all three cases, the new approach showed slightly lower RMSE values compared to the reference standard approach. Although the error is rather small for all methods, the results provide insights into the reasonability of the parameter values obtained and potential to outperform the reference approach. For the three periods, the new approach improves the RMSE by 28 %, 25 %, and 25 %, respectively (Fig. 7).

Figure 7 Evaluation results for MFC2 at the Alento site (ALC002 in Bogena et al., 2022). High variations in (a) incoming neutron intensity, (b) absolute air humidity, and (c) atmospheric pressure are compared against observed vertically weighted soil water content (SWC). Solid grey lines are the respective correction factors, with the other dashed lines representing the corresponding secondary scaling factors for this period.

4 Discussion

4.1 Overview and interpretation of key findings

This study evaluated the estimation of scaling parameters – beta, psi, and omega – used in cosmic ray neutron sensors (CRNSs) for measuring soil moisture, with an emphasis on the strengths and limitations of a data-driven approach compared to traditional semi-analytical methods. The main motivation behind this research was to refine soil moisture estimation by integrating both data-driven and semi-analytical techniques, recognizing the necessity of a hybrid approach that balances complexity, accuracy, and uncertainty.

The results indicate that these scaling parameters can be estimated well using observational data alone, without the need for direct soil moisture information, providing a robust alternative to traditional scaling methods. The proposed methodology offers a promising new tool for refining scaling parameters, potentially improving the ability to differentiate between site-specific characteristics. Thus, this data-driven approach may either serve as an alternative to or complement semi-analytical scaling methods developed in previous studies, supporting a hybrid approach that incorporates both data-driven and semi-analytical scaling functions. More detailed interpretations of the results will be discussed in the following subsections and summarized in the conclusion.

4.2 Scaling parameter estimation results

4.2.1 Atmospheric pressure and neutron flux

The synthetic test case demonstrated that the parameters beta, omega, and psi can be reliably estimated, with uncertainties quantified to provide 96 % accuracy in parameter estimates. In real-world conditions, results from the COSMOS-Europe data set confirmed the relationship between beta and cutoff rigidity. A multiple linear regression analysis revealed that mean atmospheric pressure, site altitude, and cutoff rigidity together explained 52 % (R²) of the variability in beta estimates. This finding aligns with previously published research (Desilets et al., 2010; Clem and Dorman, 2000; Dorman, 2004), which reinforces confidence in the method's validity.

In contrast to many earlier studies, this research derived beta values for the energy spectrum of CRNS sensors, which detect particles with a different energy spectrum compared to traditional neutron monitors. Few studies have successfully analysed beta using direct data from CRNS sensors (Schrön et al., 2024), with most focusing on scaling parameters derived from neutron monitors (Clem and Dorman, 2000; McJannet and Desilets, 2023; Desilets et al., 2006) and semi-analytical models (Zreda et al., 2008; Köhli et al., 2023; Desilets et al., 2010). In comparison to these previous studies, this research found a wider range of beta values, particularly at high cutoff rigidities and high altitudes.

This larger range of beta estimates has important implications for soil moisture estimation from neutron flux, as it indicates a significant sensitivity of beta to environmental factors. The broader range of beta values observed, even for thermal neutrons, underscores the influence of the energy spectrum of the observed neutrons (Bütikofer, 2018). These findings suggest that the energy spectrum plays a critical role in determining beta values, which differ significantly from those derived using neutron monitors.

Future research on atmospheric pressure scaling should aim to further investigate site-specific and sensor-specific characteristics to improve the development of scaling functions. Identifying these factors could enhance the precision of soil moisture estimates across different environments and sensor types.

4.2.2 Air humidity and neutron flux

The air humidity scaling parameter, omega, closely aligned with values proposed in other studies (Köhli et al., 2021; Rosolem et al., 2013). However, the mean omega value found in this study (−0.0065) differed by approximately 20 % from the value proposed by Rosolem et al. (2013), which could have a significant impact on soil moisture estimates under varying air humidity conditions compared to reference environments.

Our analysis using thermal neutron detectors confirmed the validity of omega estimates, with omega values being smaller, consistent with the energy spectrum of these sensors. This is due to their reduced sensitivity to hydrogen within the vertical air column and the sensor's footprint area. Similar findings were reported by Schrön et al. (2024) and Rasche et al. (2023), indicating that thermal neutrons exhibit a diminished sensitivity to air humidity.

In contrast to some previous studies, our results align more closely with those of Köhli et al. (2021), who identified a stronger influence of air humidity on neutron flux scaling in CRNSs. The omega values reported here were higher than those found in other studies which identified a stronger impact of air humidity on neutron flux scaling of CRNSs. Here, the values were higher than those of other studies (Schrön et al., 2024; Rosolem et al., 2013), resulting in a steeper slope (−0.0065) and potentially different functional form for the air humidity impact on neutron flux scaling.

4.2.3 Incoming neutron intensity and neutron flux

The results demonstrate that cutoff rigidity significantly influences the estimation of scaling parameters, particularly psi, which scales incoming neutron intensity. For example, psi values tend to be higher at sites where the cutoff rigidity is similar to that of reference NMDB stations, such as Jungfraujoch (4.5 GV). Sites with cutoff rigidities outside this range, however, exhibit more variability in psi estimates. This suggests that proximity in cutoff rigidity between a CRNS site and its corresponding NMDB reference station is critical for accurate scaling of neutron intensity measurements.

Nevertheless, other factors, including elevation and geographic distance, also affect the scaling impact. For instance, although Lmks and Jungfraujoch are located at similar altitudes, they show different scaling impacts, highlighting that cutoff rigidity is not the only determinant. This finding implies that while cutoff rigidity is a key factor, a more comprehensive approach that accounts for elevation, geographic proximity, and local environmental conditions at both CRNS and NMDB sites is required for accurate parameter estimation (Bütikofer, 2018; Gerontidou et al., 2021; McJannet and Desilets, 2023).

4.3 Implementation and implications of the new approach

A data-driven approach may offer a viable alternative to semi-analytical scaling models, providing practical benefits for CRNS users. It allows for the selection of NMDB monitors that are more appropriate for certain CRNS sites than the commonly used Jungfraujoch station. This flexibility enables improved scaling accuracy by incorporating NMDB monitors that are geographically closer or better suited to the environmental conditions of the CRNS site (Bogena et al., 2022; Zreda et al., 2012). Additionally, the method can be seamlessly integrated into existing CRNS workflows, complementing traditional methods to enhance calibration reliability. By improving calibration accuracy, the approach supports robust soil moisture estimates, enabling better-informed decisions in agriculture, hydrology, and climate monitoring.

5 Conclusions

The results of this study demonstrate that the new calibration method for estimating scaling parameters (beta, psi, and omega) for cosmic ray neutron sensors (CRNSs) is both reliable and robust. However, it should be noted that the performance of this method is dependent on the quality of the data used. The reliability of the method is supported by the strong correlations between the estimated parameters and those predicted by semi-analytical approaches. However, the study also indicated that there are larger uncertainties than previously assumed and that calibration parameters may differ significantly from the standard values. The observed relationships between parameter values, cutoff rigidity, and elevation provide further validation to the approach. However, the uncertainties highlight the need for careful data selection and parameter estimation to ensure the reliability of the results.

Furthermore, the results indicate that pressure- and efficiency-corrected data from NMDB sensors located near the CRNS, particularly those with similar or lower cutoff rigidity, should be given preference. This result is in line with existing semi-analytical scaling methods and demonstrates that cutoff rigidity is not a sufficient condition for optimal scaling parameterization. The study further underscores the importance of site- and sensor-specific scaling parameters to guarantee precise soil moisture estimates. Sensor-specific attributes, such as the energy spectrum monitored, significantly influence the accuracy of these estimates. While cutoff rigidity and elevation were identified as critical factors influencing beta, psi, and omega, additional, unidentified factors may also play a role. To ensure accuracy, it is recommended that periods with average environmental conditions are selected for calibration to minimize discrepancies between estimated and actual soil moisture.

Outlook and future directions

Future research should focus on enhancing data collection methods, defining quality standards, quantifying parameter uncertainty, and increasing the length of observation periods to reduce uncertainty. Additionally, refining scaling methods to better account for the energy dependence of neutrons, geographic and environmental factors, and other site- and sensor-specific conditions that influence scaling parameters is necessary. Although this study has identified key principles for scaling, further fine-tuning is required to fully understand and quantify the scaling functions. The findings revealed a higher variability in beta, a greater impact of air humidity on CRNS neutron intensity, and more variation in scaling factors for NMDB monitors than previously expected.

The proposed method can be tested across a broader range of sites and conditions to explore its full potential and limitations. Moving forward, a hybrid calibration approach combining the benefits of both semi-analytical and data-driven scaling methods may offer the most feasible solution. Such an approach would balance known theoretical relationships with sensor- and site-specific characteristics while also minimizing the calibration period required. By carefully considering site-specific conditions, environmental factors, and data quality, the data-driven method can improve the accuracy and reliability of soil moisture estimates using CRNSs. Future research should continue to refine these calibration techniques and further explore the factors that affect scaling functions for accurate soil moisture estimates at field scale.
